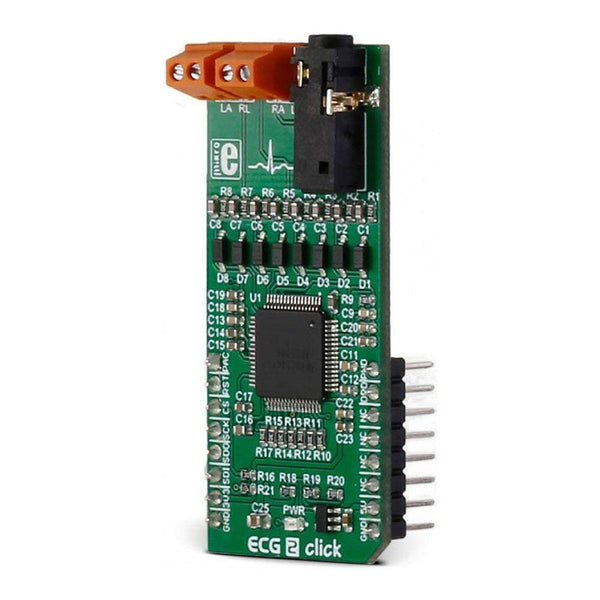

Track the patterns of your beating heart with the ECG 2 Click Board™ . The ECG 2 Click Board™ contains ADS1194 16-bit delta-sigma analogue-to-digital converters from Texas Instruments, a built-in programmable gain amplifier (PGA), an internal reference, and an onboard oscillator.
The ECG 2 Click Board™ communicates with the target MCU over SPI and the following MikroBUS pins: PWM, AN and INT. ECG 2 Click Board™ runs on a 3.3V and 5V power supply.
