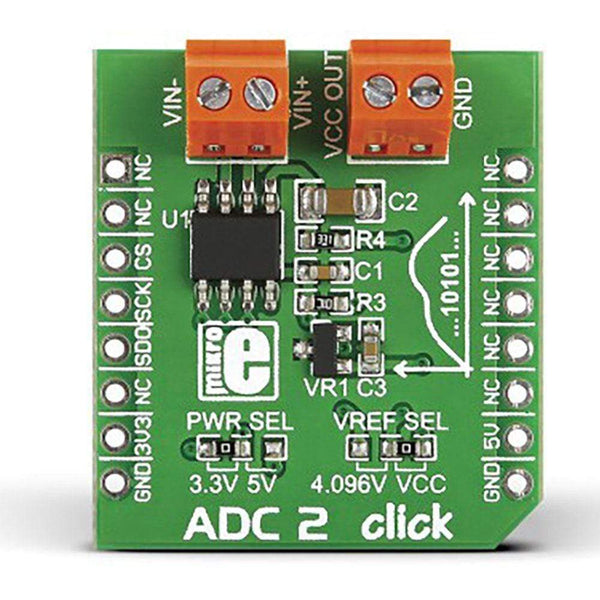

The ADC 2 Click Board™ carries MCP3551/3, which is a 22-bit ADC with automatic internal offset and gain calibration. This high precision analog-to-digital converter has total unadjusted error of less than 10 ppm, and low-output noise of 2.5 µV RMS. The board carries two pairs of screw screw terminals: VIN- for bringing in reference voltage, VIN+ for the positive voltage. VCC out and GND are output voltages. The click communicates with the target board through mikroBUS CS, CSK and MISO lines. Can use either a 3.3V or 5V power supply.
Specifications
| Type | ADC |
| Applications | For applications where high accuracy is needed (measurements from analog pressure, temperature and humidity sensors) |
| On-board modules | MCP3551 |
| Key Features | Input and output Screw terminals, 22-bit ADC, Voltage reference jumper (4.096V or VCC) |
| Interface | SPI |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |
