Technical Specifications
Applications

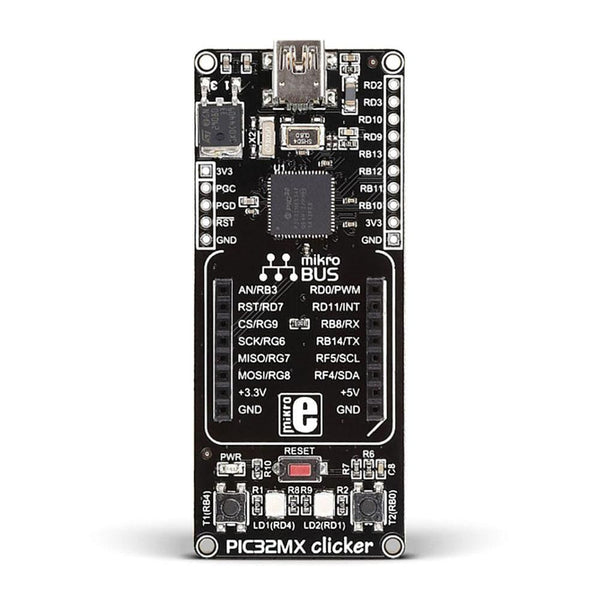

The PIC32MX Clicker Board™ brings flexibility of Click add-on boards to your favourite microcontroller, making it a perfect starter kit for implementing your ides.
Key Features
- PIC32MX534F064H MCU, delivering 80MHz/105DMIPS of processing power, 64KB of Flash, 16KB of RAM.
- USB MINI-B connector.
- Two LEDs, two push buttons, and a reset button.
- mikroProg connector and headers for interfacing with external electronics.
mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification
Key Benefits
- Single mikroBUS™ socket for adding Click additional boards.
- Small, affordable, yet powerful starter development kit.
- Mounting holes simplify integration.
- Compact design with clear and depictive silk screen markings.
| Type | Clicker |
| Architecture | PIC32 (32-bit) |
| Programming | Bootloader, External |
| Silicon Vendor | Microchip |
| mikroBUS No. | 1 |
| Supply Voltage | USB |
| Category | Clicker |
