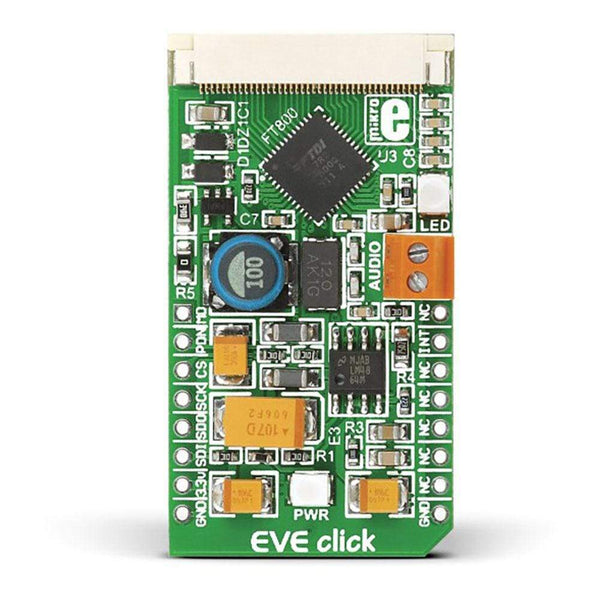

The EVE Click Board™ is a compact and easy solution to introduce graphics controller to the user design. It includes FT800Q graphics controller and additional modules arranged in MikroBUS form factor. The EVE (Embedded Video Engine) Click Board™ features a 3-in-1 functionality integrated with display, audio and touch interfaces. It supports 12 widgets and provides transparency and anti-aliasing support. EVE Click Board™ provides five-star graphics even on 8-bit microcontrollers with little Flash and RAM. It contains 40-pin flat cable connector for connecting 4.3" touchscreens (display not included in the package). EVE Click Board™ communicates with the target board microcontroller through the MikroBUS SPI (MISO, MOSI, SCK, CS), INT, RST and AN lines. This accessory board supports use of 3.3V power supply only. The green LED diode shows the presence of power supply.
EVE Click Board™ also incorporates flat cable connector, LM4864 audio amplifier, LED diode as well as screw terminals for additional functionality.
It is an ideal choice for Point of Sales (PoS) machines, Multi-Function Printers (MFPs), home security systems, graphic touchpad, medical appliances, power meters, home appliance devices, and many more.
