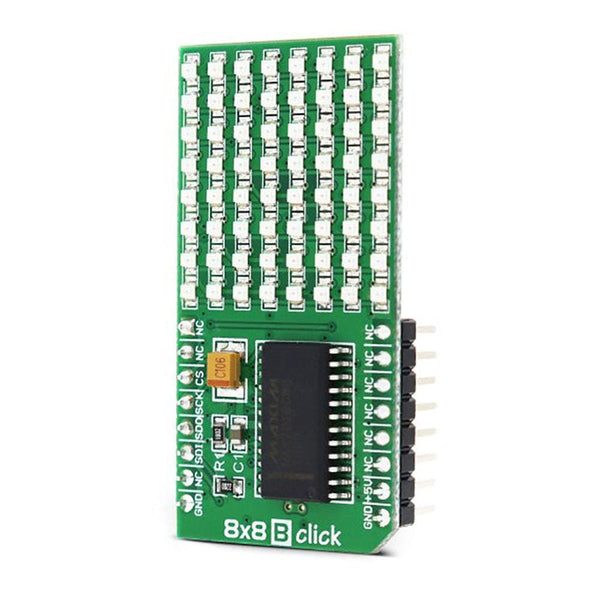

Introducing a blue serial 8x8 LED matrix display to your design with the 8x8 B Click Board™ . This display add-on board in the MikroBUS form factor incorporates an 8-digit MAX7219 LED display driver module as well as 64 (8x8) blue-coloured LEDs. This click board is designed to communicate with the target board MCU through four MikroBUS SPI lines (DIN, DOUT, CLK and CS).
The serially-interfaced MAX7219 LED display driver features an on-chip BCD code-B decoder, digital and analogue brightness control, and an 8x8 static RAM that stores each digit. The 8x8 B Click Board™ makes an ideal choice for bar graph displays, industrial controllers, led matrix displays, and panel meters. It is available in a range of other colour options including red, green, and yellow.
