8x8 G Click Board

MIKROE-1306
Regular price
£25.00
Sale price
£25.00
Regular price
£0
Sold out
Unit price
Quantity must be 1 or more

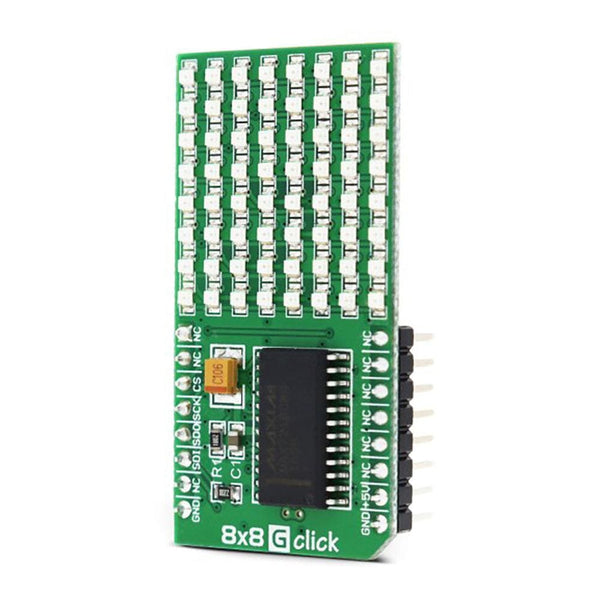

Introduce a green serial 8x8 LED matrix display to your design with the 8x8 G Click Board™ . This display add-on board in the MikroBUS form factor incorporates an 8-digit MAX7219 LED display driver module as well as 64 (8x8) green-coloured LEDs. This clock board is designed to communicate with the target board MCU through four MikroBUS SPI lines (DIN, DOUT, CLK and CS).

The serially-interfaced MAX7219 LED display driver features an on-chip BCD code-B decoder, digital and analogue brightness control, and an 8x8 static RAM that stores each digit. the 8x8 G Click Board™ makes an ideal choice for bar graph displays, industrial controllers, led matrix displays, and panel meters. It is available in a range of other colour options including red, blue, and yellow.
