IC/Module: ENC28J60 Stand-Alone Ethernet Controller
ENC28J60 is a stand-alone Ethernet controller based on IEEE 802.3 specifications. It consists of an SPI interface that communicates between the host controller and the module. It has a dual port RAM buffer for received and transmitted data packets.
MAC and 10Base-T PHY

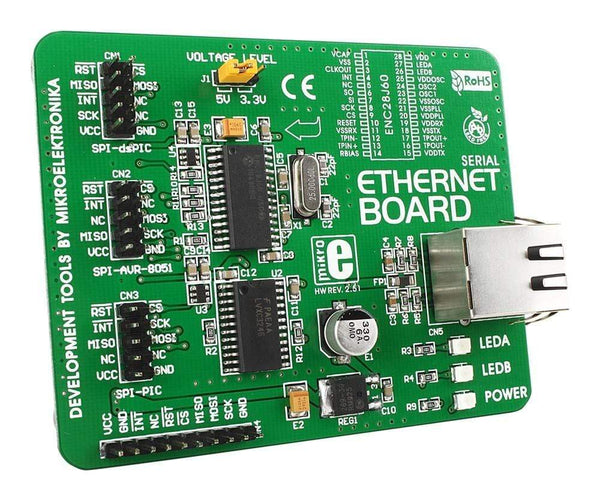

Serial Ethernet Board features integrated MAC (Medium Access Controller) and 10Base-T PHY (Physical Layer). MAC supports unicast, multicast and broadcast packets, and implements IEEE 802.3 compliant MAC logic. PHY features a loopback mode and has two programmable LED outputs for LINK, TX, RX, collision and full/half-duplex status.
Power Supply Selection
ENC28J60 aboard Serial Ethernet Board is designed to use a 3.3V power supply voltage, but can be used with 5V devices as well. The input pins CS, SCK, SI and RESET are 5V tolerant, and can receive data from the microcontroller. The jumper J1 enables the user to set the voltage level of communication lines and power supply of the microcontroller connected to the board.
