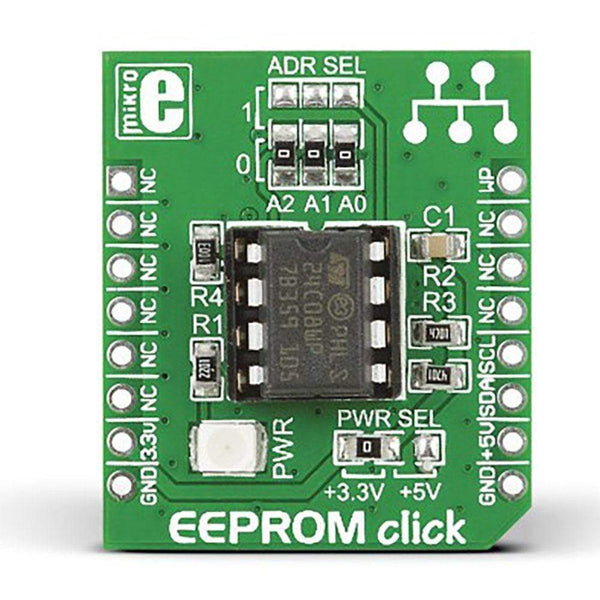

The EEPROM Click Board™ from MikroE is an add-on storage board that includes a 24C08WP serial EEPROM with 8 Kbits of memory. Driven by CMOS technology, this Click Board™ enables the user to add more 8 Kbit EEPROM memory to the device. An ideal choice for low power and low voltage applications, the 24C08WP module is compatible with the I2C memory standard and uses a bi-directional data bus and serial clock. It is available in DIP packaging. The DIP socket makes EEPROM easily replaceable. EEPROM Click Board™ works well with both the 100 kHz I2C standard mode and the 400 kHz I2C fast mode. The board is designed to operate on a 3.3V or 5V power supply, selectable by an SMD jumper. Another set of SMD jumpers that allow address selection is also available on the board. The green LED diode denotes the status of the power supply.
The EEPROM Click Board™ is an ideal selection for storing initialisation and configuration data of your device.
