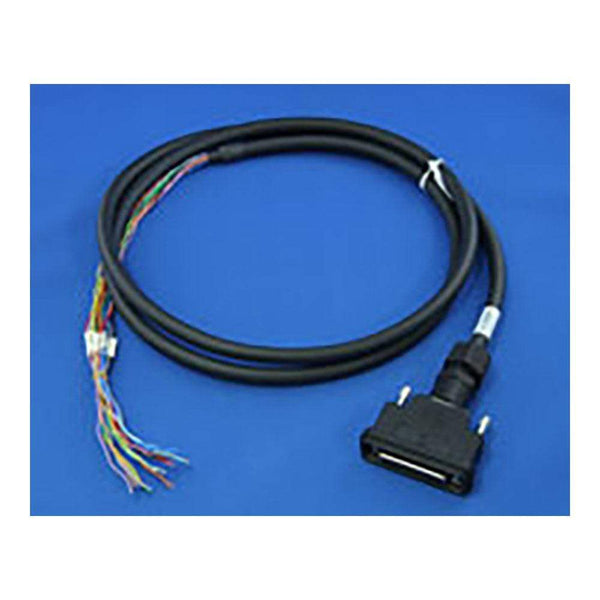

Cable Outline
Cable Pin Assignment
Specification
| Length | 2m |
|---|---|
| Connector | CN1: DSUB 25-pin (female) connecter. Water-proofing. #4-40 inch screw. CN2: Free wires with identification tags. |
| Cable | Twisted shield cable. AWG #24 10 pairs (17 lines are used). Length: 2m. |
| Compatible Analysers | LE-270AR/LE-270A |
* Connectors or clips necessary for connecting to the target to be measured are to be provided by the user.
* DSUB connectors are not waterproof when disconnected.
* Custom cables of the required length are available.
