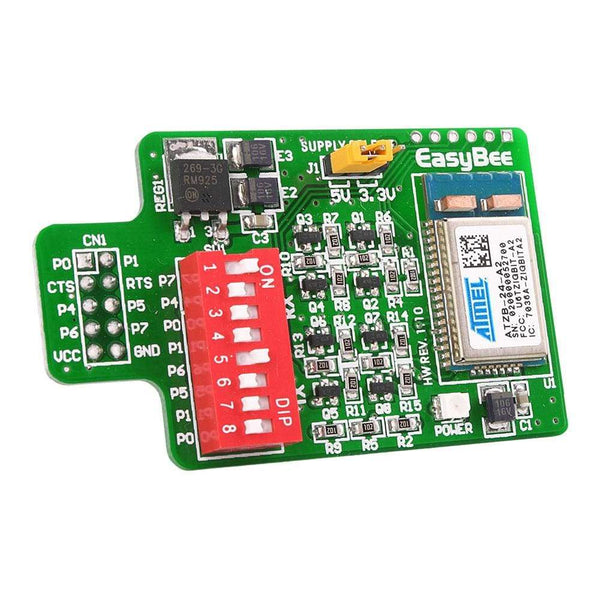

The EasyBee Board employs an Atmel ATZB-24-A2/B0 ZigBit module with a dual-band chip antenna. Offered in a small footprint (13.5mm x 24mm), it comes with an impressive set of features. It offers simple wireless communication between a development system and a device. This 802.15.4 / ZigBee transceiver module, operating at 2.4 GHz, ensures exceptional radio performance and offers standard-based wireless connectivity for a wide range of applications. The EasyBee Board comes with a female IDC10 connector to plug into a development system. It uses the serial UART interface for communication with the host microcontroller. The DIP switch enables the user to set which pins are used for RX/TX. On the side of the board, it has six connection pads that allow for direct access to UART pins RX, TX, RTS, and CTS. Capable of being used with a range of development systems, it is designed to operate using 3.3V or 5V power supply voltage.
The EasyBee Board is an ideal choice for building automation and monitoring, HVAC monitoring and control, inventory management, environmental monitoring, security, and many more.
