Open protocol interface

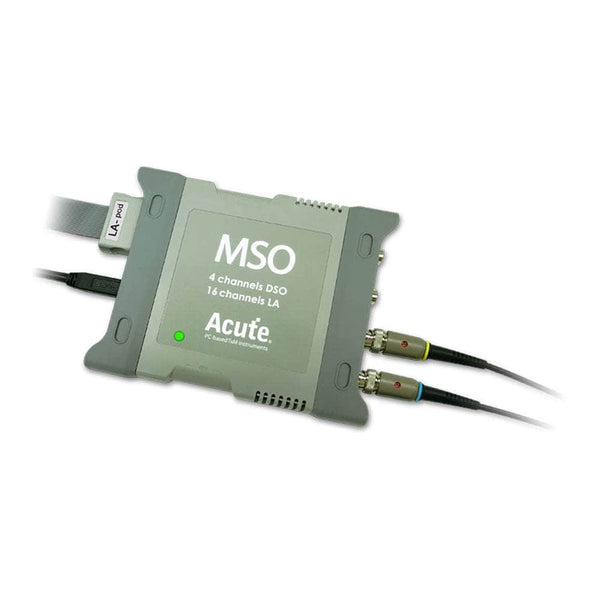

If the desired protocol is not included in the more than 100 protocol interpreters, or if there is a need to integrate a custom protocol, the open protocol interface of the MSO3000 series is a helpful feature. To implement a custom decoding function, simply write a Dynamic Link Library (DLL) and add it to the plugin folder of the installation directory. The structural design of the DLL describes the LA Open Decode Interface.
Multiple Trigger Functions
Edge Trigger: Trigger on a rising/falling/both/alternate edge.
Pattern Trigger: Trigger when the logic inputs make the selected function true.
Trigger Hold Off : Holdoff time adjustable up to 10s.
Runt Trigger: Use 2 voltage thresholds and pulse width to trigger on either alternating/positive/negative running signals.
Analogue: 4CH, 1 GS/s S/R, 200 MHz bandwidth
Group I: Edge, either, external, falling, rising, video, width
Group II: Runt, pattern/status, timeout, transition, setup/hold, B-trigger, B-event, window
Bus I: BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux[1], I2C, I2S, LIN2.2, Modbus, Profibus, SENT, SPI, SVI2, UART UART(RS232), USB1.1, . ..
Bus II: SVI3[2], SVID[3]
[1] Optional DP_Aux adapter required.
[2] On request from an AMD approved user. SVI3 bus triggers/decoders are ONLY supported by MSO3124V.
[3] At the request of a user who has signed CNDA with Intel. SVID bus trigger/decoding are supported ONLY by MSO3124V.
Digital: 16 CH, 2 GS/s timing analysis, 250 MHz state analysis
Bus Trigger I: CAN2.0B/CAN FD, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SENT, SPI, UART, USB PD 3.1, ...
Bus Trigger II: DALI, LPC, MDIO, Mini/Micro LED, MIPI RFFE 3, MIPI SPMI 2, PMBus, Profibus, SMBus, SVI2, ...
Bus Trigger III: eMMC 4.5, eSPI, MII, RGMII, RMII, SD 3.0 (SDIO 2.0), serial Flash (SPI NAND), SVI3[2], SVID[3]
Protocol Analyser I: CAN2.0B/CAN FD, HID via I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SENT, SPI, UART, USB PD 3.1, ...
Protocol Analyser II: DALI, MDIO, Mini/Micro LED, MIPI RFFE 3, Modbus, PMBus, Profibus, SMBus, USB1.1
Protocol Analyser III: eSPI, MII, RGMII, RMII, SVI3[2], SVID[3]
Bus decoding: CAN 2.0B/CAN FD, DP_Aux[1], eSPI, I²C, I²S, MII, MIPI I3C 1.1, MIPI RFFE 3, MIPI SoundWire, SPI, SPI Flash, SVI3[2], SVID[3], UART , USB PD 3.1, ...(100+)
[1] Optional DP_Aux adapter required.
[2] ONLY on request from users authorised by AMD, SVI3 trigger & PA & bus decoding supported ONLY by MSO3124H/V.
[3] ONLY on request from users signed CNDA with Intel, SVID trigger and PA & bus decoding supported ONLY by MSO3124H/V.
