LVDS Probe is only for LA4000/3000 series & BusFinder series. LVDS Probe can be applied to logic signal and low voltage differential signal(LVDS) measurement.

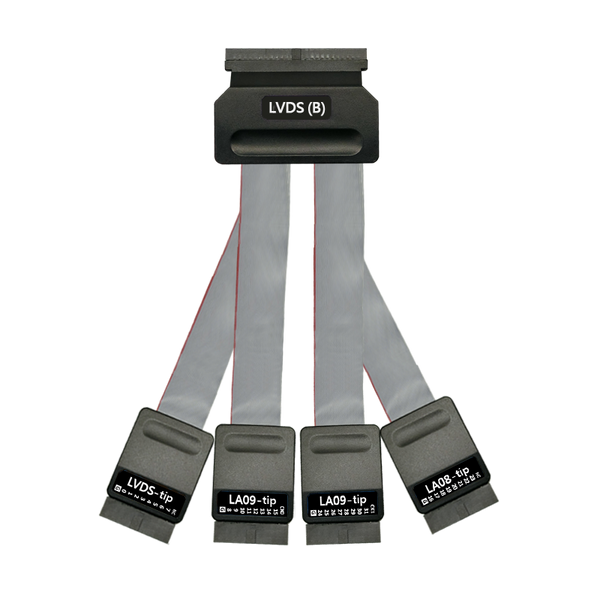

• LA08/09 Tip: Digital signal input channel. It contains 2 LA09-tip & 1 LA08-tip for single-ended signal measurement.
• LVDS Tip: Low voltage differential signal input channel. It contains 8 pairs of differential signals in the LVDS-tip
LVDS, as a commonly used high-speed data transmission standard, requires dedicated probing tools for signal analysis and measurement. It finds extensive applications in high-speed data transmission systems, image processing, industrial automation, and other fields.
Signal Compatibility:
LVDS logic analyzer probes should exhibit good signal compatibility, capable of adapting to different types and standards of LVDS signals.
Measurement Range:
The probes should cover the typical LVDS signal range, including the general voltage range of 200 mV to 1200 mV, to ensure accurate measurements.
Excellent Common Mode Rejection Ratio (CMRR):
The probes should have excellent CMRR to reduce the impact of common mode interference on measurements, ensuring precise signal analysis.
Differential Acquisition Capability:
The probes should effectively capture LVDS differential signals, maintaining signal integrity and reducing signal distortion.
Low Interference and Noise:
The probes should possess outstanding interference resistance, minimizing external interference and noise"s impact on measurements.
